pXR004: CasRx pre-gRNA cloning backbone

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pXR004: CasRx pre-gRNA cloning backbone
出品公司: 爱迪基因
目录编号: 109054
存储实验室: Patrick Hsu

载体骨架基本信息
载体名称: pUC19
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: 2686 bp
完整质粒大小: --
载体修饰: 插入gRNA表达盒
载体类型: 哺乳动物表达,CRISPR
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: --
物种来源: --
插入大小: --
基因突变: --
GenBank编号 --
启动子 hU6
标签/融合蛋白: --
克隆方法: --
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 --
3' 测序引物 --

文献引用方法
材料和方法部分: pXR004: CasRx pre-gRNA cloning backbone was a gift from Patrick Hsu (Addgene plasmid # 109054 ; http://n2t.net/addgene:109054 ; RRID:Addgene_109054)
参考文献部分: Transcriptome Engineering with RNA-Targeting Type VI-D CRISPR Effectors. Konermann S, Lotfy P, Brideau NJ, Oki J, Shokhirev MN, Hsu PD. Cell. 2018 Mar 8. pii: S0092-8674(18)30207-1. doi: 10.1016/j.cell.2018.02.033. 10.1016/j.cell.2018.02.033 PubMed 29551272

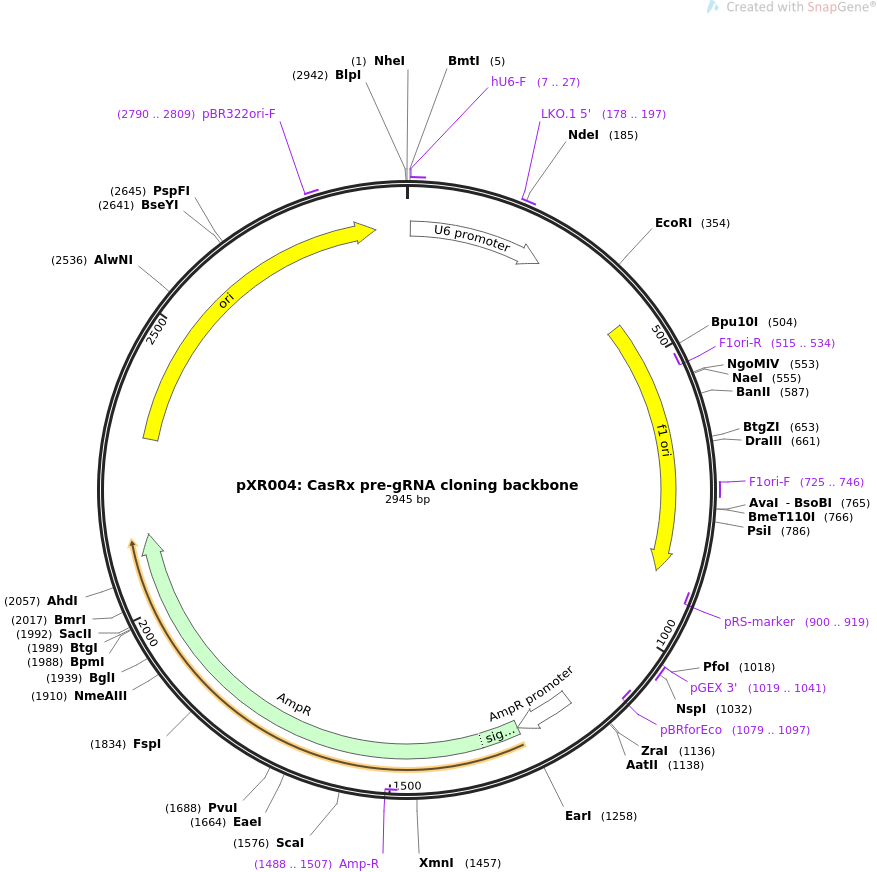

载体图谱质粒图谱和多克隆位点信息

pXR004CasRx pre-gRNA cloning backbone质粒图谱

载体简介

载体序列

LOCUS       pXR004: CasRx pre-gRNA cloning backbone                2945 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  hU6-driven expression of guide RNAs compatible with CasRx. Contains
            BbsI sites for guide cloning flanked by 5' and 3' full-length DRs.
ACCESSION   .
VERSION     .
KEYWORDS    pXR004: CasRx pre-gRNA cloning backbone
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 2945)
  AUTHORS   Konermann S, Lotfy P, Brideau NJ, Oki J, Shokhirev MN, Hsu PD
  TITLE     Transcriptome Engineering with RNA-Targeting Type VI-D CRISPR
            Effectors.
  JOURNAL   Cell. 2018 Mar 8. pii: S0092-8674(18)30207-1. doi:
            10.1016/j.cell.2018.02.033.
  PUBMED    29551272
REFERENCE   2  (bases 1 to 2945)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..2945
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        7..247
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     7..27
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     178..197
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     rep_origin      428..883
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(515..534)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     725..746
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(900..919)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     1019..1041
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(1079..1097)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        1165..1269
                     /gene="bla"
                     /label=AmpR promoter
     CDS             1270..2130
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(1488..1507)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      2301..2889
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     2790..2809
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 gctagcgagg gcctatttcc catgattcct tcatatttgc atatacgata caaggctgtt
       61 agagagataa ttggaattaa tttgactgta aacacaaaga tattagtaca aaatacgtga
      121 cgtagaaagt aataatttct tgggtagttt gcagttttaa aattatgttt taaaatggac
      181 tatcatatgc ttaccgtaac ttgaaagtat ttcgatttct tggctttata tatcttgtgg
      241 aaaggacgaa acaccgcaag taaaccccta ccaactggtc ggggtttgaa acgggtcttc
      301 gagaagacct caagtaaacc cctaccaact ggtcggggtt tgaaactttt tttgaattct
      361 gatgcggtat tttctcctta cgcatctgtg cggtatttca caccgcatac gtcaaagcaa
      421 ccatagtacg cgccctgtag cggcgcatta agcgcggcgg gtgtggtggt tacgcgcagc
      481 gtgaccgcta cacttgccag cgccttagcg cccgctcctt tcgctttctt cccttccttt
      541 ctcgccacgt tcgccggctt tccccgtcaa gctctaaatc gggggctccc tttagggttc
      601 cgatttagtg ctttacggca cctcgacccc aaaaaacttg atttgggtga tggttcacgt
      661 agtgggccat cgccctgata gacggttttt cgccctttga cgttggagtc cacgttcttt
      721 aatagtggac tcttgttcca aactggaaca acactcaact ctatctcggg ctattctttt
      781 gatttataag ggattttgcc gatttcggtc tattggttaa aaaatgagct gatttaacaa
      841 aaatttaacg cgaattttaa caaaatatta acgtttacaa ttttatggtg cactctcagt
      901 acaatctgct ctgatgccgc atagttaagc cagccccgac acccgccaac acccgctgac
      961 gcgccctgac gggcttgtct gctcccggca tccgcttaca gacaagctgt gaccgtctcc
     1021 gggagctgca tgtgtcagag gttttcaccg tcatcaccga aacgcgcgag acgaaagggc
     1081 ctcgtgatac gcctattttt ataggttaat gtcatgataa taatggtttc ttagacgtca
     1141 ggtggcactt ttcggggaaa tgtgcgcgga acccctattt gtttattttt ctaaatacat
     1201 tcaaatatgt atccgctcat gagacaataa ccctgataaa tgcttcaata atattgaaaa
     1261 aggaagagta tgagtattca acatttccgt gtcgccctta ttcccttttt tgcggcattt
     1321 tgccttcctg tttttgctca cccagaaacg ctggtgaaag taaaagatgc tgaagatcag
     1381 ttgggtgcac gagtgggtta catcgaactg gatctcaaca gcggtaagat ccttgagagt
     1441 tttcgccccg aagaacgttt tccaatgatg agcactttta aagttctgct atgtggcgcg
     1501 gtattatccc gtattgacgc cgggcaagag caactcggtc gccgcataca ctattctcag
     1561 aatgacttgg ttgagtactc accagtcaca gaaaagcatc ttacggatgg catgacagta
     1621 agagaattat gcagtgctgc cataaccatg agtgataaca ctgcggccaa cttacttctg
     1681 acaacgatcg gaggaccgaa ggagctaacc gcttttttgc acaacatggg ggatcatgta
     1741 actcgccttg atcgttggga accggagctg aatgaagcca taccaaacga cgagcgtgac
     1801 accacgatgc ctgtagcaat ggcaacaacg ttgcgcaaac tattaactgg cgaactactt
     1861 actctagctt cccggcaaca attaatagac tggatggagg cggataaagt tgcaggacca
     1921 cttctgcgct cggcccttcc ggctggctgg tttattgctg ataaatctgg agccggtgag
     1981 cgtggaagcc gcggtatcat tgcagcactg gggccagatg gtaagccctc ccgtatcgta
     2041 gttatctaca cgacggggag tcaggcaact atggatgaac gaaatagaca gatcgctgag
     2101 ataggtgcct cactgattaa gcattggtaa ctgtcagacc aagtttactc atatatactt
     2161 tagattgatt taaaacttca tttttaattt aaaaggatct aggtgaagat cctttttgat
     2221 aatctcatga ccaaaatccc ttaacgtgag ttttcgttcc actgagcgtc agaccccgta
     2281 gaaaagatca aaggatcttc ttgagatcct ttttttctgc gcgtaatctg ctgcttgcaa
     2341 acaaaaaaac caccgctacc agcggtggtt tgtttgccgg atcaagagct accaactctt
     2401 tttccgaagg taactggctt cagcagagcg cagataccaa atactgttct tctagtgtag
     2461 ccgtagttag gccaccactt caagaactct gtagcaccgc ctacatacct cgctctgcta
     2521 atcctgttac cagtggctgc tgccagtggc gataagtcgt gtcttaccgg gttggactca
     2581 agacgatagt taccggataa ggcgcagcgg tcgggctgaa cggggggttc gtgcacacag
     2641 cccagcttgg agcgaacgac ctacaccgaa ctgagatacc tacagcgtga gctatgagaa
     2701 agcgccacgc ttcccgaagg gagaaaggcg gacaggtatc cggtaagcgg cagggtcgga
     2761 acaggagagc gcacgaggga gcttccaggg ggaaacgcct ggtatcttta tagtcctgtc
     2821 gggtttcgcc acctctgact tgagcgtcga tttttgtgat gctcgtcagg ggggcggagc
     2881 ctatggaaaa acgccagcaa cgcggccttt ttacggttcc tggccttttg ctggcctttt
     2941 gctca
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例
